Infratech Surface Mount Duplex/Stack Switches With Weather Proof Cover For Exposed Exterior Areas
Starts at: $148.00
Single Gang: 14-4320
Dual Gang: 14-4325
Infratech’s Duplex Stach Switches are user-friendly and compatible with almost any budget. Can be used with single and dual element electric heaters.

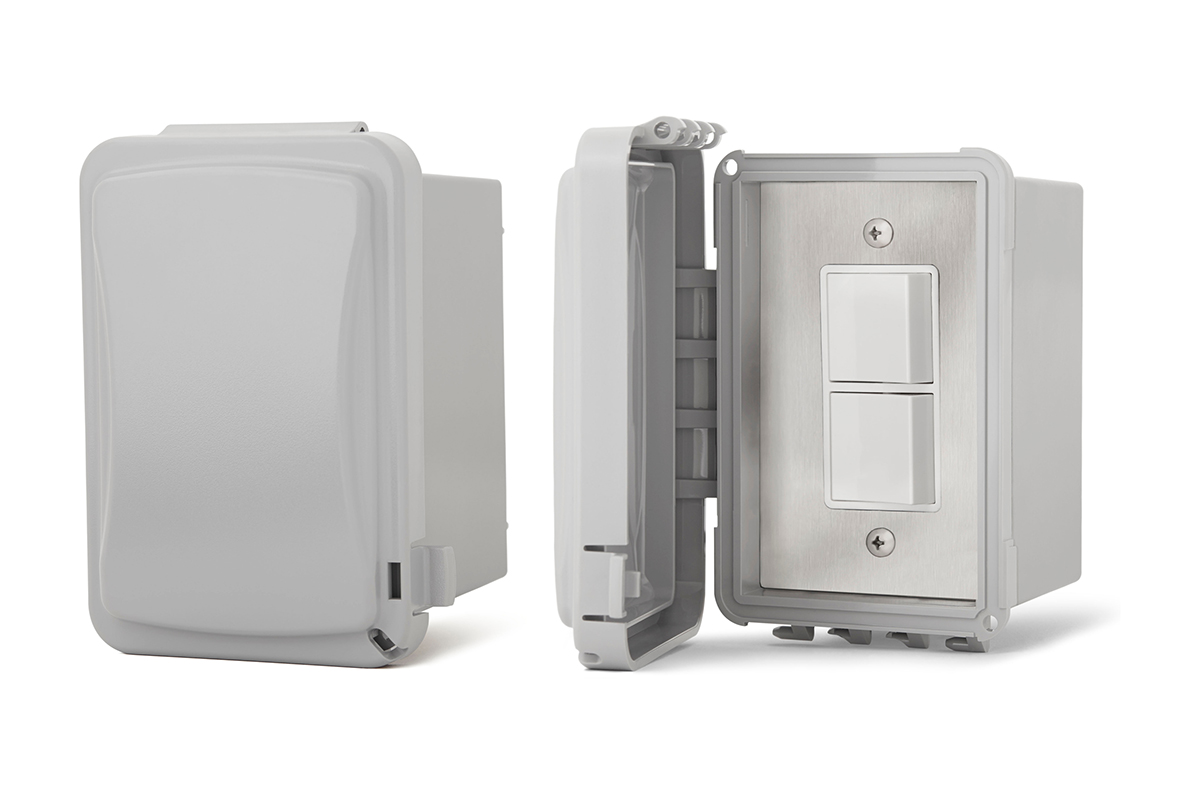

14 4320 Dimensions And Features
- Weatherproof Box: 4 9/16″ H x 2 3/4″ W x 2″ D
- SS Plate: 4 3/8″ H x 2 5/8″ W
- Weatherproof Cover: 5 1/2″ H x 3 3/4″ W x 2 3/4″ D (Tab on cover extends 1/4″)
- Threaded Knock Out: 1/2″
- Two Single Pole Single Throw (DPST) Switches
- Range: 120/277 VAC
- Recommended not to exceed:
- 208/220 VAC=3000 Watts Max per Switch
- 240/277 VAC=4000 Watts Max per Switch
- 20 Amps Max per pole
- Made in the USA
- 3-Year Warranty

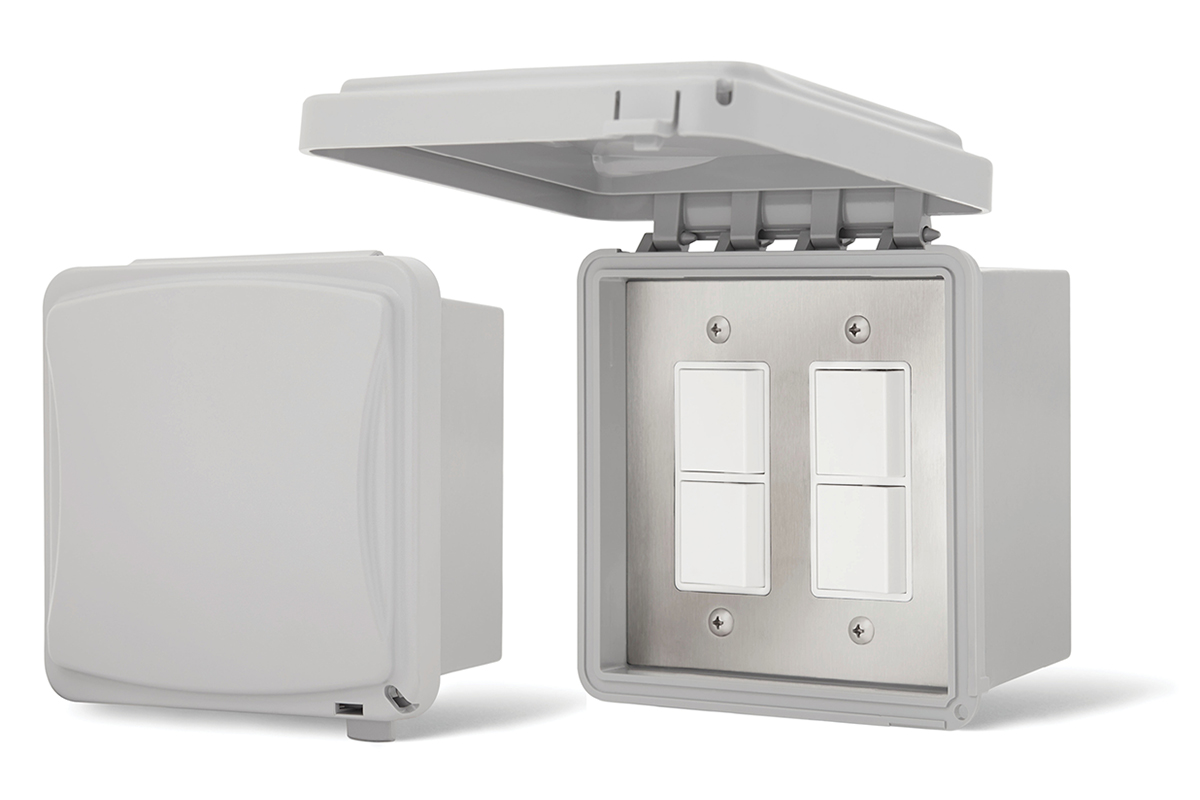

14 4325 Dimensions And Features
- Weatherproof Box: 4 1/2″ H x 4 1/2″ W x 2 1/8″ D
- SS Plate: 4 3/8″ H x 4 3/8″ W
- Weatherproof Cover: 5 1/2″ H x 5 1/2″ W x 1 1/4″ D (Tab on covers extends 1/4″)
- Threaded Knock Out: 3/4″
- (2) Two Single Pole Single Throw (DPST) Switches, a total of 4
- Range: 120/277 VAC
- Recommended not to exceed:
- 208/220 VAC = 3000 Watts Max per Switch
- 240/277 VAC = 4000 Watt Max per Switch
- 20 Amps Max per Pole
- Made in the USA
- 3-Year Warranty
Additional information
| Choose Model | 14 4320 Single Duplex Switch Surface Mount & Gang Box 20Amp Per Pole, 14 4325 Dual Duplex Switch Surface Mount & Gang Box 20Amp Per Pole |
|---|
