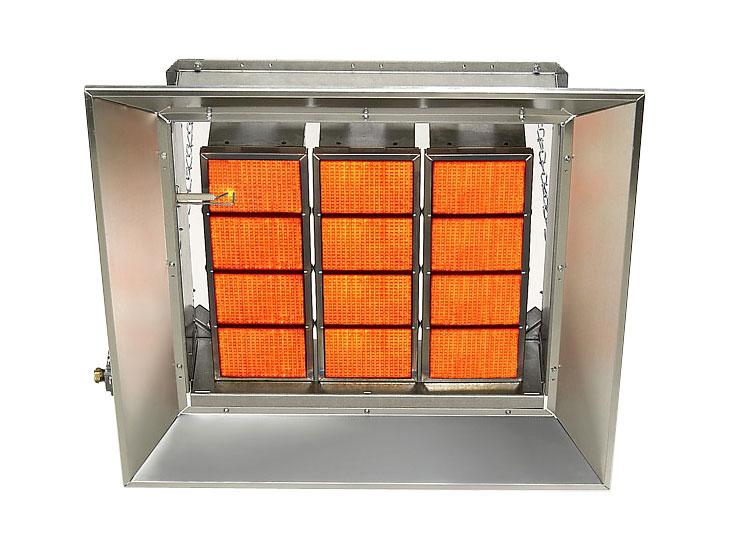

SunStar SG Series
Starts at: $549.00
- Capacities from 30,000 to 155,000 Btu/hr
- Dimpled tile assembly design for increased radiant efficiency
- Design certified for angle mounting up to 30 degrees
- Equipped with 100% gas shut-off safety control
- Constructed of aluminized steel for corrosion resistance
- Aluminum reflectors designed to maximize radiant output
- Optional protective radiant screen
- Compact size for UPS shipping
DESCRIPTION
SunStar SG Series
Ceramic Infrared Heating is the answer for spot or area heating and for total building heating needs. It is also ideal for the replacement of existing ceramic heaters. SunStar Ceramic Heaters heat like the sun by transferring radiant heat energy directly into the area to be heated and creating a warm comfort zone at the floor level. This extremely efficient method of heating can result in fuel savings of between 30% and 50% when compared to forced air convection heating.
- Manufacturing Plants
- Warehouses
- Auto Dealerships
- Aircraft Hangars
- Loading Docks
- Fire Stations
- Commercial Garages
- Machine Shops
- Tennis Courts
- Maintenance Shops
- Farm Buildings
- Truck Service Areas
SPECIFICATIONS
SunStar SG Series
SG Technical Specifications
| Model | Gas Type | Input BTU/HR | No. of Burners | Minimum Mounting Height |
|---|---|---|---|---|
| SG3-N | Natural Gas | 30,000 | 1 | 12′ |
| SG3-L | Propane | 32,000 | 1 | 12′ |
| SG4-N | Natural Gas | 40,000 | 1 | 12′ |
| SG6-N | Natural Gas | 60,000 | 2 | 13′ |
| SG6-L | Propane | 65,000 | 2 | 13′ |
| SG8-N | Natural Gas | 80,000 | 2 | 14′ |
| SG10-N | Natural Gas | 100,000 | 3 | 15′ |
| SG10-L | Propane | 100,000 | 3 | 15′ |
| SG12-N | Natural Gas | 120,000 | 3 | 16′ |
| SG13-L | Propane | 130,000 | 4 | 17′ |
| SG14-N | Natural Gas | 140,000 | 4 | 17′ |
| SG15-N | Natural Gas | 150,000 | 4 | 18′ |
SG Dimensions Charts
REQUIREMENTS
SunStar SG Series
SG Supply Requirements
| Gas Type | Burner Pressure (Water Column) | Supply Pressure (Water Column) |
|---|---|---|
| Natural Gas | 6″ | 7″ Min – 14″ Max |
| Propane | 10″ | 11″ Min – 14″ Max |
Direct Spark Ignition System. 120 VAC. 0.40 Amp. Includes 120/24 V Transformer. 1/2 NPT Female Gas Connection.
SG Clearances to Combustibles (Mounted Horizontally)
| Model | Sides | Ceiling | Below | w/Reflector Extension |
|---|---|---|---|---|
| SG3 and SG4 | 31″ | 37″ | 73″ | 101″ |
| SG6 and SG8 | 49″ | 49″ | 99″ | 138″ |
| SG10 and SG12 | 49″ | 65″ | 129″ | 181″ |
| SG13, SG14, and SG15* | 49″ | 65″ | 137″ | 191″ |
SG Clearances to Combustibles (Mounted 30° Angle)
| Model | Below | w/Reflector Extension | Front | w/Reflector Extension | Rear |
|---|---|---|---|---|---|
| SG3 and SG4 | 73″ | 101″ | 37″ | 51″ | 31″ |
| SG6 and SG8 | 99″ | 138″ | 49″ | 69″ | 37″ |
| SG10 and SG12 | 129″ | 181″ | 61″ | 85″ | 49″ |
| SG13, SG14, and SG15* | 137″ | 191″ | 65″ | 91″ | 49″ |
WARNING: This heater is not approved for any residential installation including home, residential, garage, or recreational use (mobile home, RV’s, campers, etc.). For residential garage applications SunStar recommends SIR Series vented tube heaters.
Additional information
| Fuel Type | Natural Gas, Propane |
|---|---|
| Choose Model | SG3-N 30,000 BTU, SG3-L 32,000 BTU, SG4-N 40,000 BTU, SG6-N 60,000 BTU, SG6-L 65,000 BTU, SG8-N 80,000 BTU, SG10-N 100,000 BTU, SG10-L 100,000 BTU, SG12-N 120,000 BTU, SG13-L 130,000 BTU, SG14-N 140,000 BTU, SG15-N 155,000 BTU |
