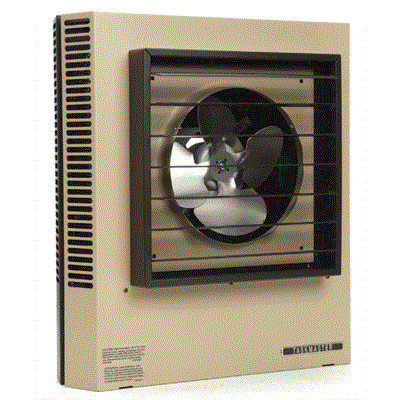

5100 Series Horizontal or Vertical Suspended Fan Forced Unit Heater

Made in the USA

• Construction: Heavy 18 gauge welded steel cabinet with powder coated beige & brown two-tone finish. With control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation and maintenance.
• Heating Element: Copper clad steel sheath element with continuously brazed steel fins formed to allow side draw through air flow.
• Overheat Protection: All units come equipped with automatic reset type limit controls to de-energize the heater should an over-temp situation occur.
• Louver Assembly: Louvers are individually adjustable for directional control of air flow up to 15 degrees from straight horizontal. Optional diffusers available for down flow (vertical discharge) applications.
• Temperature Controls: Optional low voltage and line voltage thermostats available with an adjustable temperature range of 40-degree F to 110-degree F. Units with model numbers ending in CA1 are factory wired for low voltage controls. 25 KW through 50 KW units are designed for two stage heating operation.

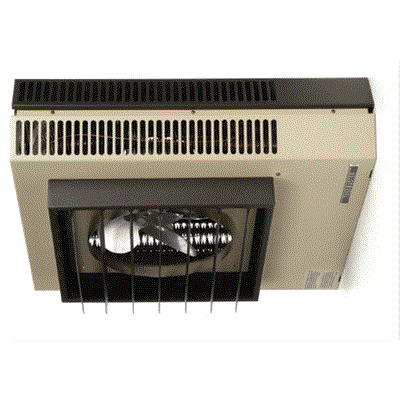

• Installation: Unit heaters can be mounted for Horizontal or Vertical discharge. Applications up to 6000 Ft.
