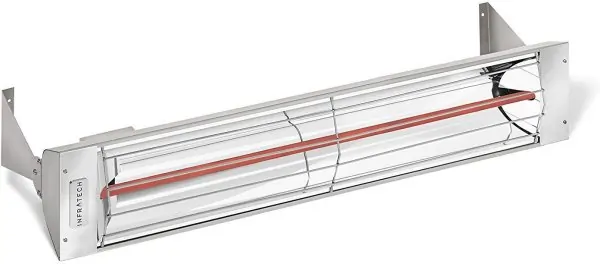

Infratech W-Series Single Element Heaters

Starts at: $512.00

Custom Powder Coating (Optional)

Order total:

Free Shipping!

Made in the USA

With many sizes to choose from, it’s essential to choose the correct W-Series single element heater to provide the perfect coverage and heat necessary for the perfect environment. Home and business owners may need to use more than one heater, to cover larger areas.

Features of the Infratech Radiant Heaters Included:

  • Minimal clearance requirements
  • Recessed mounting options
  • Short standoff and mounting heights 7-11 feet
  • Choose from 1,500-4,000 watt / 120-480 volt

W-Series Single Element Heaters Range From 1,500 – 4,000 Watts.

  • 6″ Stainless Steel Mounting Kit Included
  • 33″ to 61 1/4″ Length
  • 0 to 60 Degree Mounting Angle
  • Maximum Efficiency
  • Heats Indoors and Outdoors
  • Provides Spot Heat to Exposed Areas
  • Minimal Maintenance Costs
  • UL listed for indoor and outdoor use
  • Units may be regulated for desired heat
  • NEW Multi-Zone control systems available
  • No moving parts – low maintenance
  • 3 Y ear Warranty
  • Wide range of accessories available
  • W-Series fixtures are perfect for basic installation

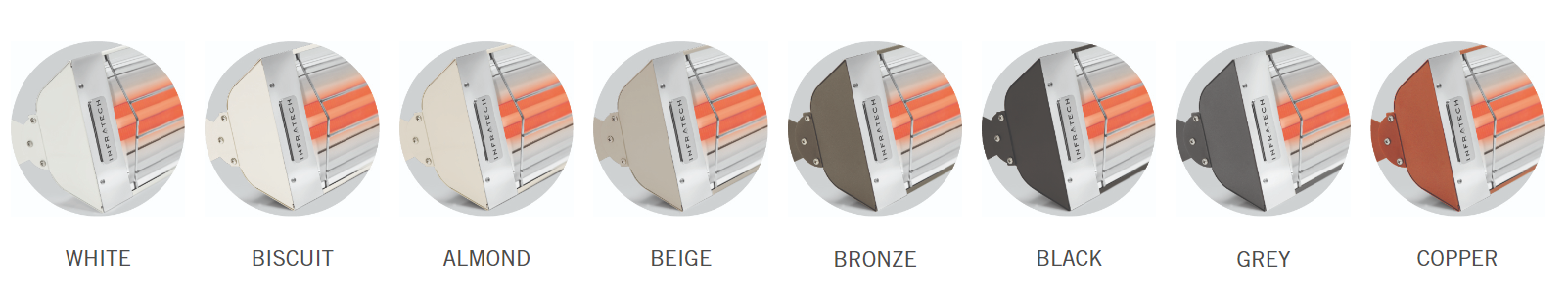

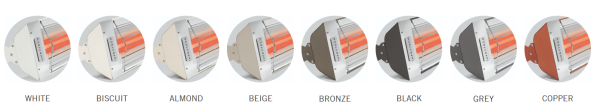

  • Custom powder coating options available in White, Almond, Beige, Bronze, Gray, Copper, or Black for an additional cost
  • Controls/switches/remotes are not included
Part NumberLengthBTUSFlush Mount Kit Item NumbersPower (Watts)VoltsAmpsShipping Weight
W-1512SS33″5,18818 22951,50012012.512lbs
W-2024SS39″6,82418 23002,0002408.313lbs
W-2524SS39″8,53018 23002,50024010.413lbs
W-3024SS61 1/4″10,23618 23053,00024012.520lbs
W-4024SS61 1/4″13,64818 23054,00024016.720lbs
ModelWattsMounting HeightAverageColdProtected
W-1512 SS15006′ – 8′ (1.8M – 2.4M)5′ X 5′ (1.5M – 1.5M)3′ X 3′ (0.91M X 0.91M)7′ x 7′ (2.1m x 2.1m)
W-2024 SS20007′ -9′ (2.1m – 2.7m)6′ x 6′ (1.8m x 1.8m)4′ x 4′ (1.2m x 1.2m)8′ x 8′ (2.4m x 2.4m)
W-2524 SS25007′ -9′ (2.1m – 2.7m)7′ x 7′ (2.1m x 2.1m)5′ x 5′ (1.5 x 1.5m)9′ x 9′ (2.7m x 2m)
W-3024 SS30007′ -9′ (2.1m – 2.7m)8′ x 8′ (2.4m x 2.4m)6′ x 6′ (1.8m x 1.8m)10′ x 10′ (3.0m x 3.0m)
W-4024 SS40008′ – 11′ (2.4m – 3.4m)10′ x 10′ (3.0m x 3.0m)8′ x 8′ (2.4m x 2.4m)12′ x 12′ (3.7m x 3.7m)

How to Select an Electric Infrared Indoor-Outdoor Heater

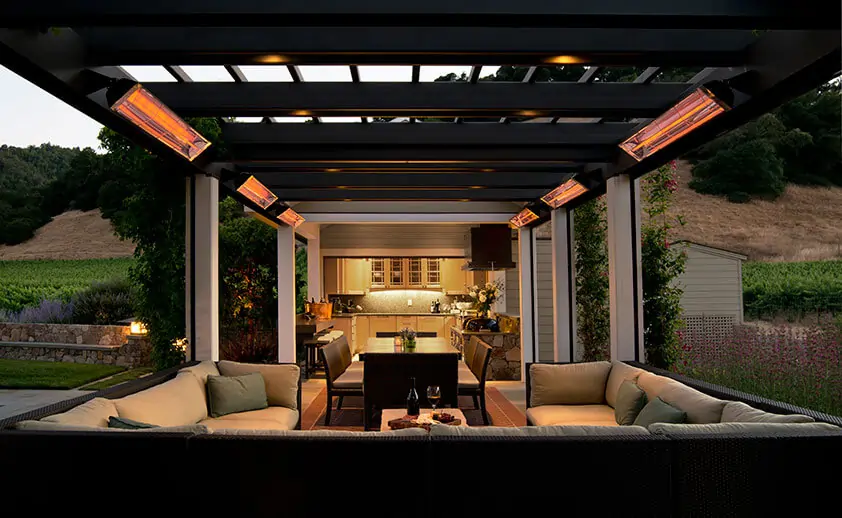

At Infratech, we are proud to be a top outdoor heating choice of architects, designers, and engineers. In this video, we’ll show you how to select heaters for any project including a pergola, patio, and deck, in just 3 easy steps. Learn how to choose from our wide range of heaters, mounting options and controls to meet your specific outdoor heating needs and extend your outdoor living season.

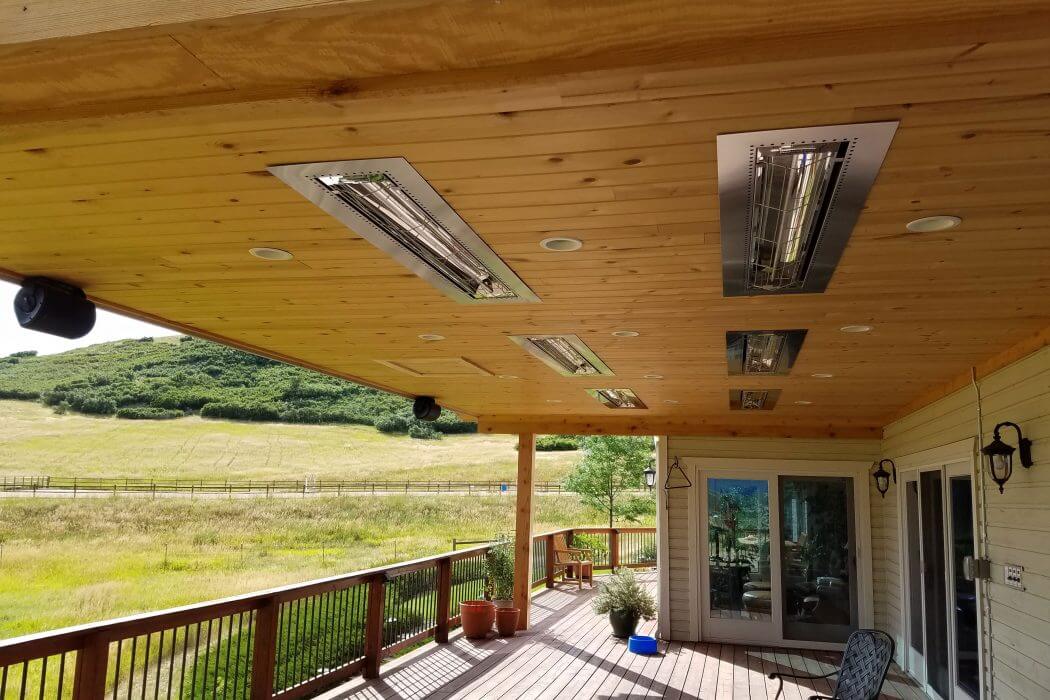

How to Flush Mount an Infratech W-Series WD-Series Heater

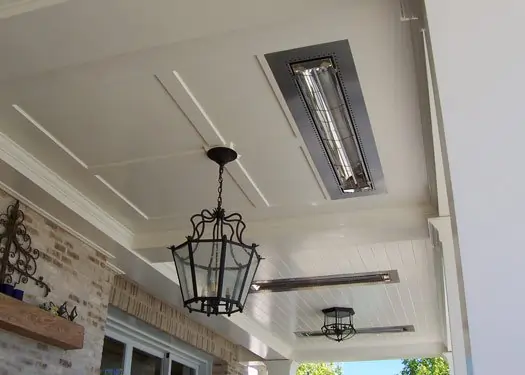

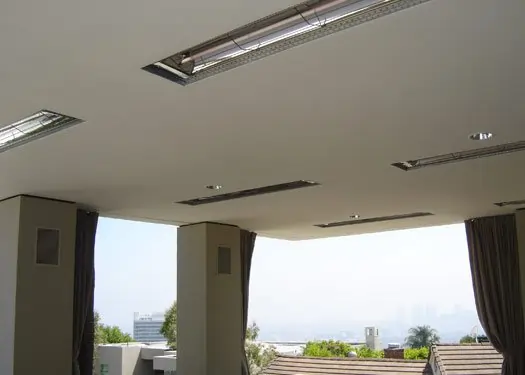

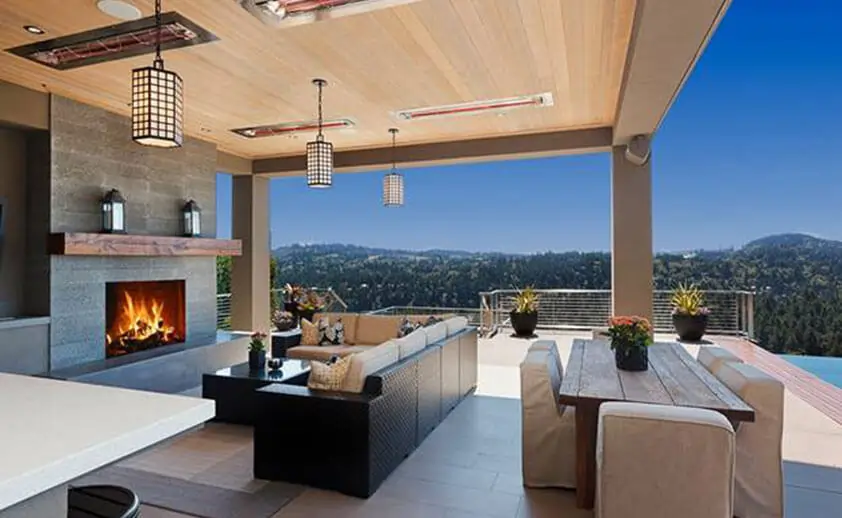

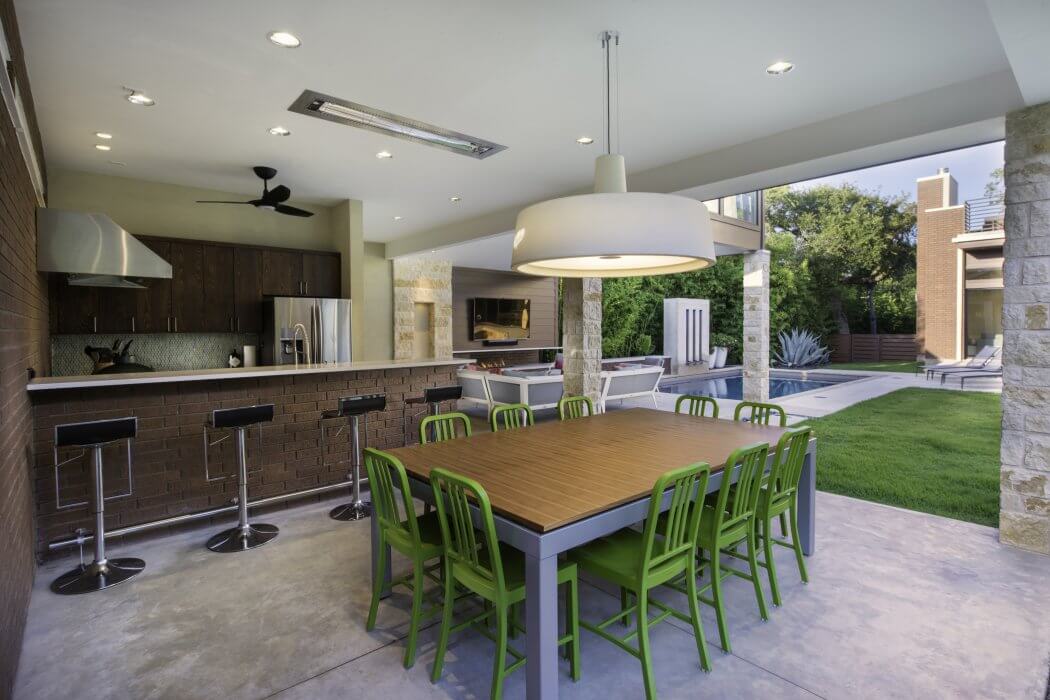

Our flush mounting option has long been a favorite among the interior designers and architects who develop today’s most sought-after commercial and residential properties. Flush mounted Infratech indoor-outdoor heaters can provide warmth without disrupting the décor of the space – the flush mount frame can be installed with the edges exposed, or can be covered by a drywall, plaster, stucco, or tongue-in-groove wood ceiling treatment. It is also easy to install and operate.

In this video, we will show you the process for flush mount installation for these Infratech radiant heaters.

How to Replace an Infratech Heating Element – W and WD-Series

Infratech’s classic W-Series indoor-outdoor heaters are ideal for most basic residential or commercial installations, ranging from 1500 to 4000 watts and 120 to 480 volt capacities. The dual element WD-Series provides more heat for large scale coverage needs, ranging from 3,000 to 6,000 watts and 208 to 480 volt capacities.

In this video, we’ll show you how to easily replace your heating element for your Infratech W-Series or WD-Series indoor-outdoor heaters.

Additional information

Choose Model

W1512SS 33” 1500 Watt 120 Volt, W1524SS 33” 1500 Watt 240 Volt, W2024SS 39” 2000 Watt, W2524SS 39” 2500 Watt, W3024SS 61 ¼” 3000 Watt, W4024SS 61 ¼” 4000 Watt


120V, 208V, 240V, 277V, 480V

Fuel Type


BTU & Wattage

1500, 2000, 2500, 3000, 4000
