Infratech Home Management System Panel

MADE IN THE USA

Special Order – Panels are completely custom. Final Sale, cannot be returned, exchanged or returned to be re-worked.

At the time of order, you must specify heater model per relay, voltage and phase.

Relay Panels requiring more than six relays are also available by special order. Please contact us for details.

The Infratech Home Management Panel is a great solution to integrate your Infratech Electric Heater(s) directly into your home automation system. This system offers a wide range of programming options through your home management system such as zone heating, heat dimming, timer functionality and the ability for offsite control via your smartphone. This panel is compatible with automation systems such as Lutron, Crestron, Control 4, Savant, and more. This system does require a 0-10V DC Signal.

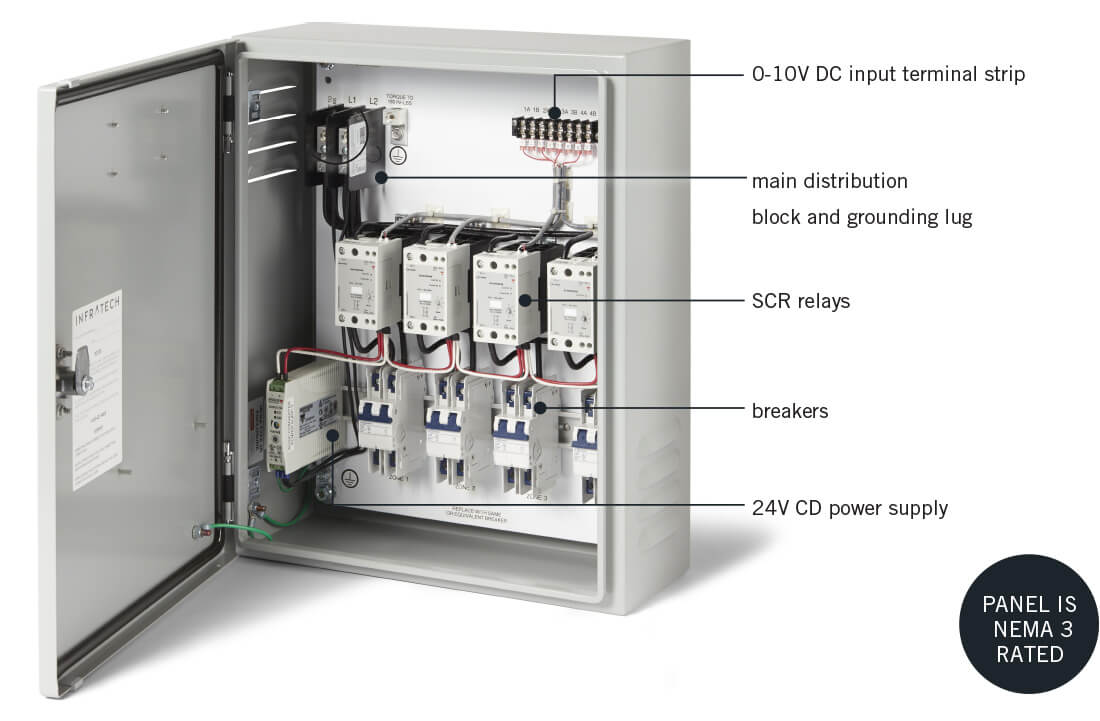

• Requires 0-10V DC Signal.
• 9,000 Watt maximum per relay for 240 Volt
• 8,000 Watt maximum per relay for 208 Volt
• Adjust heat levels, set timer functions, and create heat zones, all through your home automation interface
• Electrical wiring diagrams will be provided for each installation
• Home Automation System is required

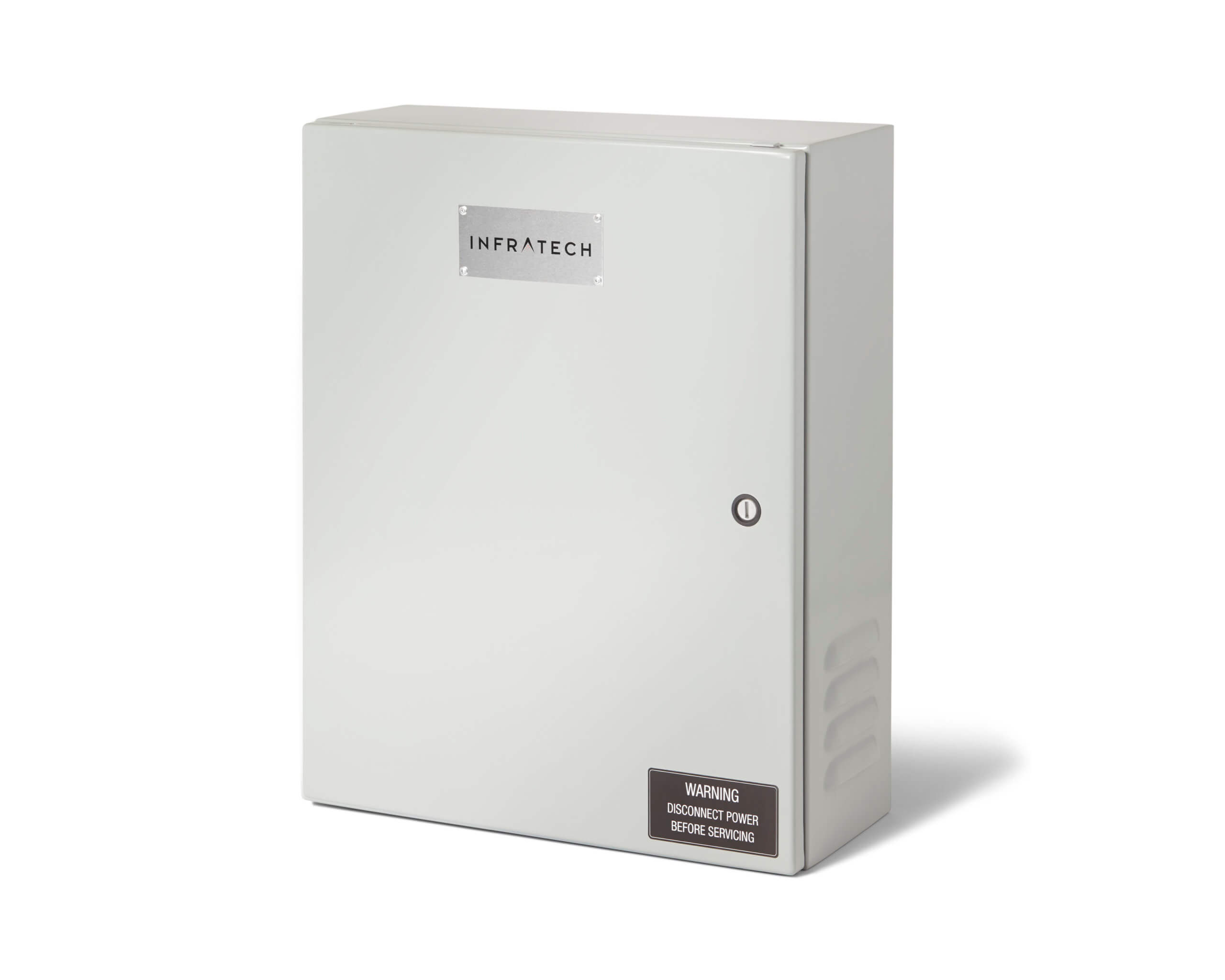

• Nema 4 enclosure:
• Interior measurements: 20″ H x 14″ W x 6″ D
• Exterior measurements: 20″ H x 16″ W x 7″ D
• UL Listed
• 3 Year Warranty
• The Home Automation Interface is to be provided by your audio-visual installer
• What your Home Automation system offers is what will be available to your heater(s). For example, how you control/dim your lights is how you will be able to control your heater(s)

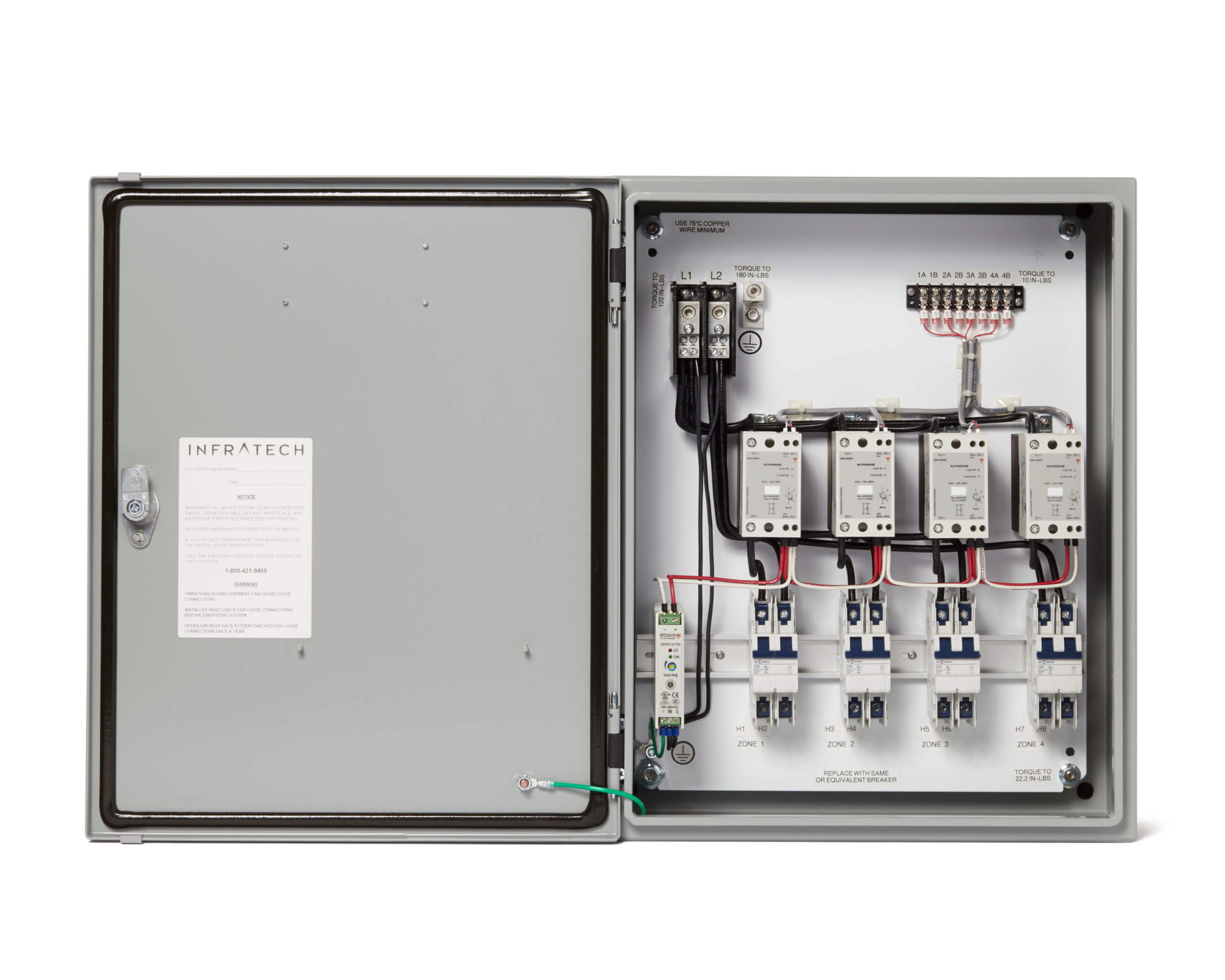

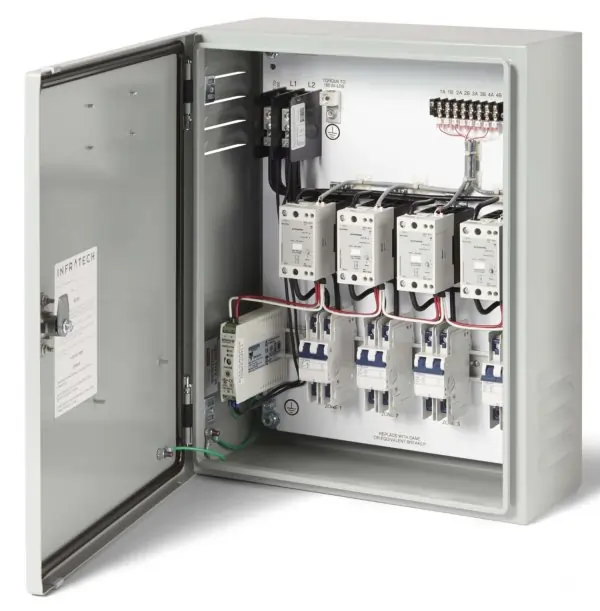

This Home Management Panel is compatible with all 208Volt & 480Volt Infratech heaters. All panels are custom built to your specification with 1 to 6 zone configurations. For projects that require more than 6 zones, please contact us directly, 760-779-1352 for a custom quote.

How to order:

1. First Select the number of Zones

1. Each Zone can handle up to 9,000 watts at 240Volt or 8,000 watts at 208Volt
   • Heaters that are paired in a zone must have matching wattages
     • Ex: you CAN pair (2) 4,000-watt heaters in a single zone because the wattages match and they total up to less than 9,000 watts
     • Ex:  you CAN NOT pair a 4,000 watt and a 6,000 watt in a single zone because the wattages DO NOT match, and they total up to more than 9,000 watts.
2. Heaters that are paired together in a zone will be controlled together
   • EX: if you pair (2) 4,000-watt heaters in a single Zone, they will be controlled as a pair
3. To achieve individual heater control, you will need as many zones as you have heaters
   • Ex: If you have (4) 6,000-watt heaters you will need a Four Zone box.

2. Advise Of Phase and Voltage:

• All panels are custom built to your specification, the phase, voltage, and heater configuration MUST be provided. Orders that are missing the phase and voltage information will delay the processing of the order and ultimately could delay your project timeline. All panels are custom built and final sale, we highly recommend contacting your electrician to confirm the phase and voltage of your space PRIOR to ordering.

What’s Included: Home Automation Panel

What Needs to be Purchased Separately: Automated interface such as a phone or tablet (not provided by us) & heaters

For a complete system you will need the following:

Infratech Heater(s).

Panel.

Automated interface such as a phone or tablet.
