Infratech SL-Series Single Element Heater

Starts at: $646.00

Infratech’s Slimline Series feature sleek profiles and will blend into the decor of any home and are perfect for low clearance heights.

Order total:

Download Manual:

Download CAD Drawings:

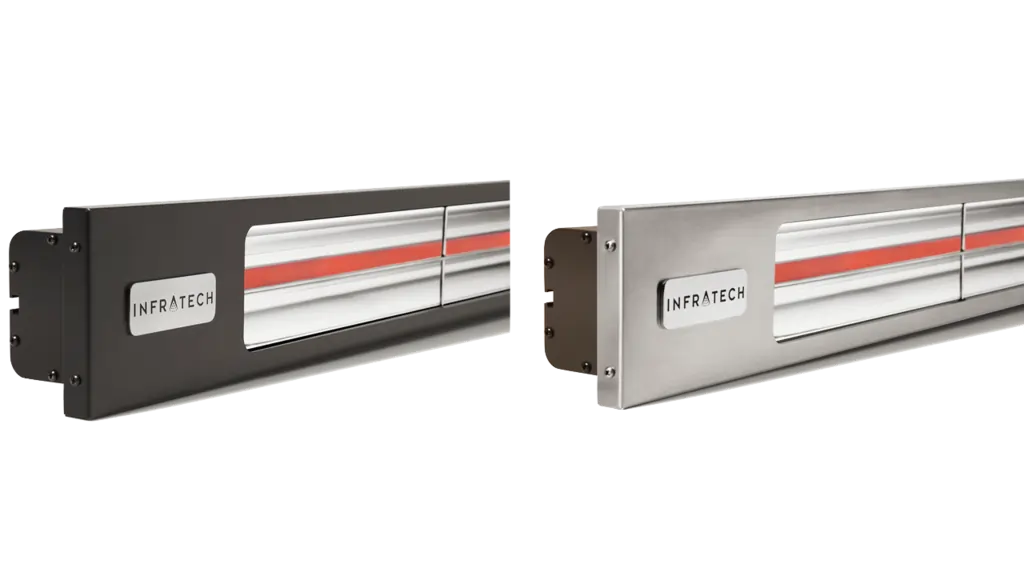

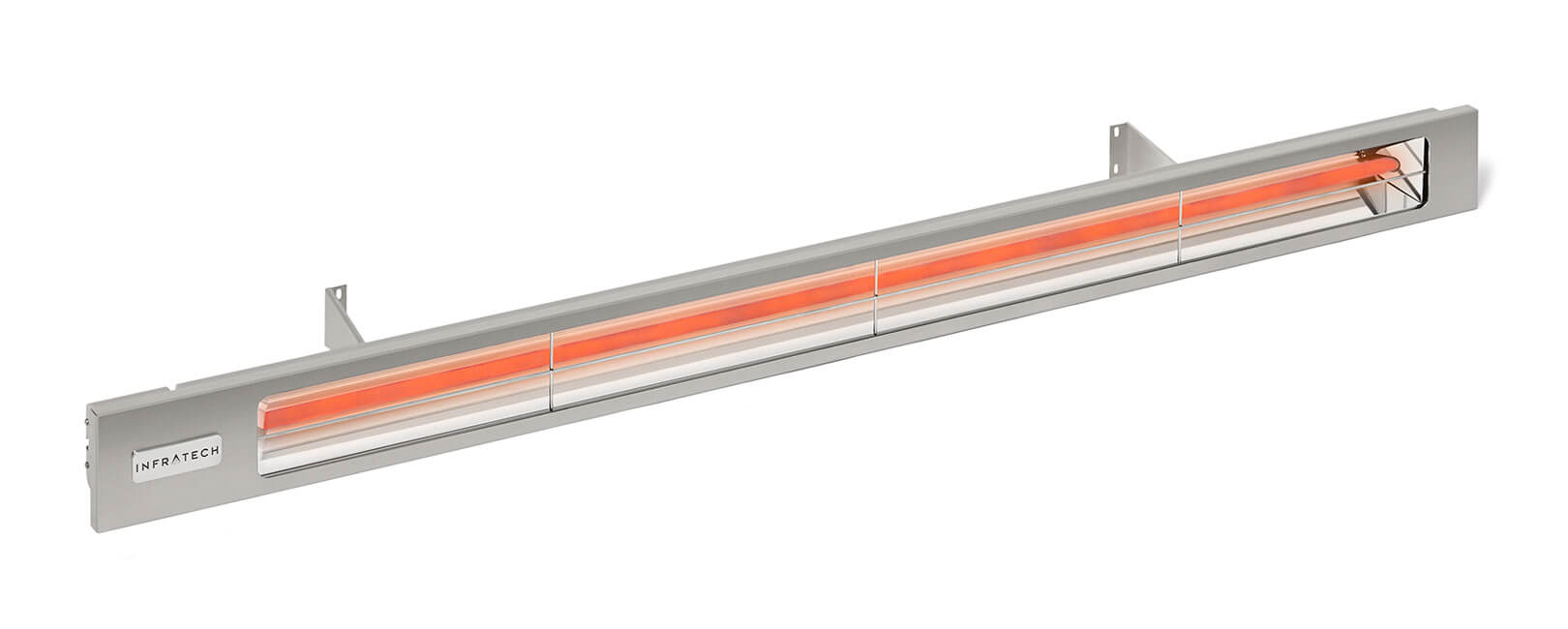

The Infratech SL-Series INFRATUBE Outdoor Quartz Radiant Heaters set the standard in outdoor heating technology.

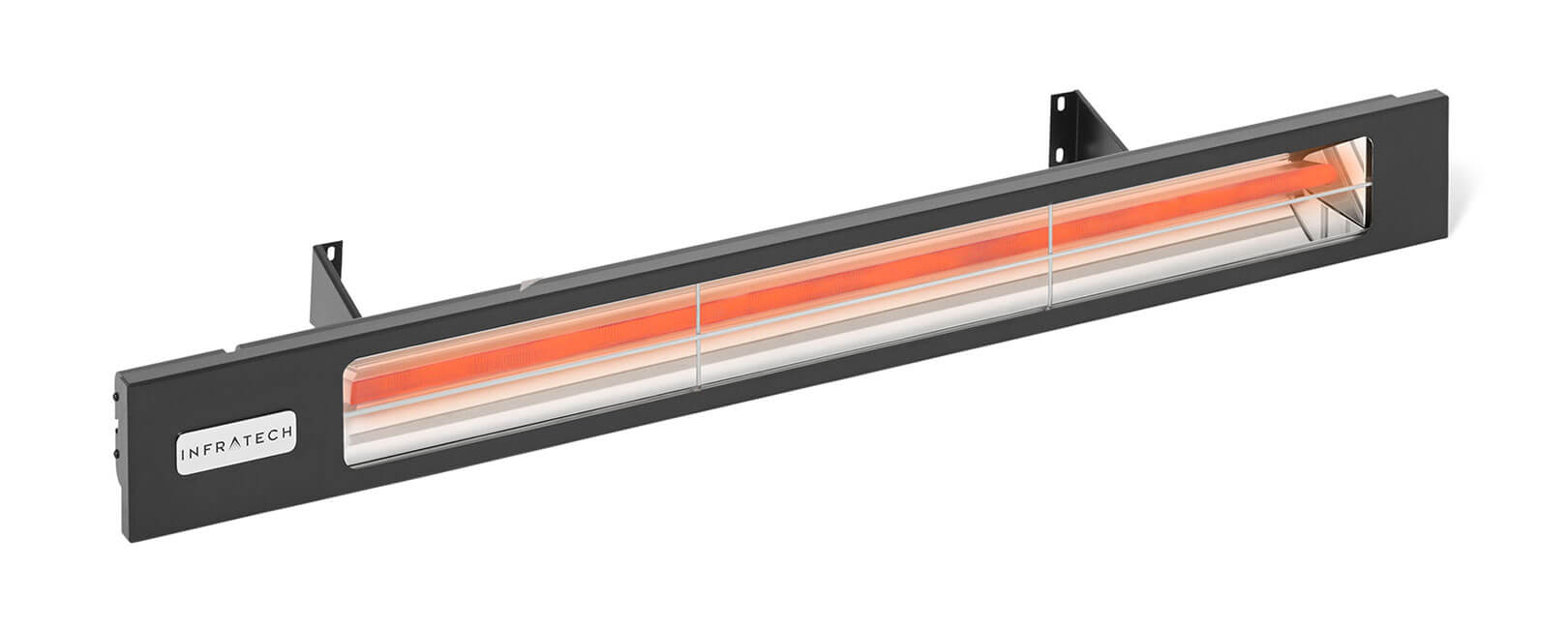

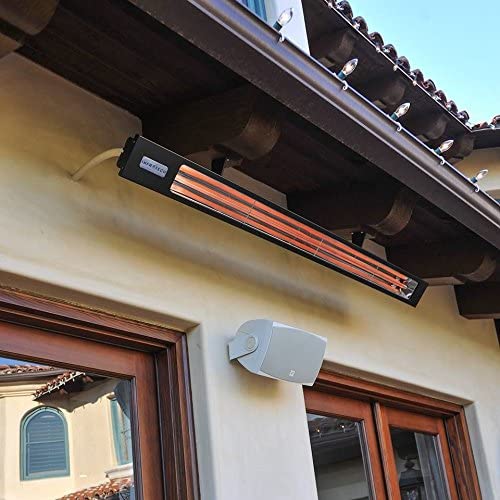

Sleek and streamlined, Slimline element heaters are an ideal choice for surface mount applications up to ten feet. With crisp, modern styling, brushed stainless trim with optional dark contrasting housing and narrow profiles, Slimline heaters virtually disappear into the surrounding decor. Each electric commercial heater features a durable anodized aluminum housing with an architectural finish that is capable of withstanding years of outdoor use. Slimline heaters are available in 1600 watts, 2400 watts, 3000 watts and 4000 watts.



  • Slimline Single Element – ideal for surface mounting – applications up to 11 feet

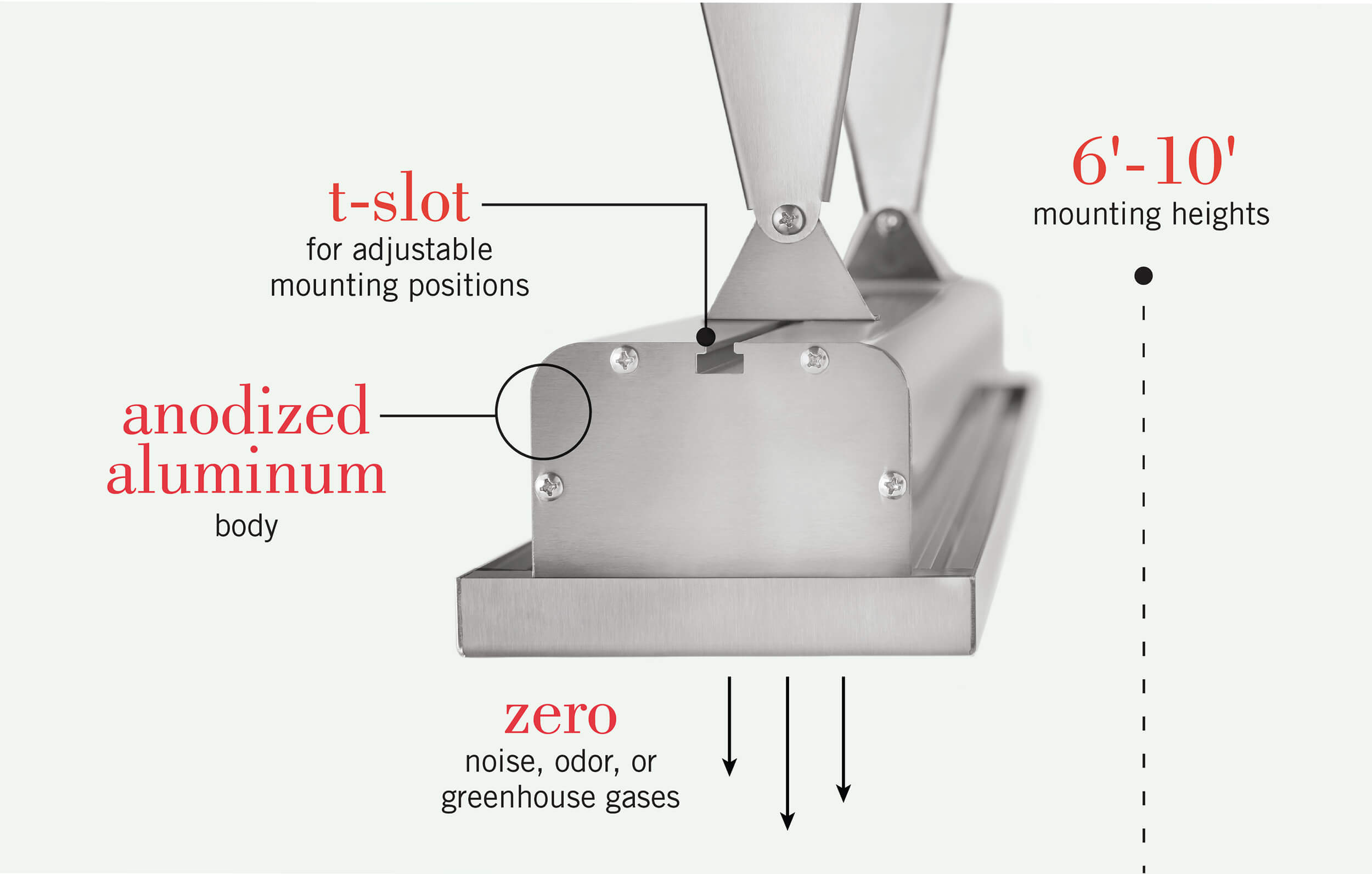

  • Includes: modern style, stainless trim, T-slot for flexible mounting options
  • Choice of 1,6000, 2,400, 3,000, or 4,000 W capacities
  • Available in anodized aluminum (silver, bronze, and black)
  • Able to last many years outside
  • UL listed for Indoor and Outdoor use
  • 3 Year Warranty
Item NumberLength  BTUSWatt  Volt   AmpsShipping Weight
SL-161229.5”5,4611600   120  13.310
SL-1624            29.5”5,4611600   240  6.713
SL-2424             42.5”8,1922400   240  1013
SL-3024             63.5”10,2403000    240  12.517
SL-4024            63.5”13,6534000    240  16.717

How to Select an Infrared Outdoor Electric Heater

At Infratech, we are proud to be a top outdoor heating choice of architects, designers, and engineers. In this video, we’ll show you how to select heaters for any project including a pergola, patio, and deck, in just 3 easy steps. Learn how to choose from our wide range of heaters, mounting options and controls to meet your specific outdoor heating needs and extend your outdoor living season.

How to Flush Mount an Infratech W-Series WD-Series Heater

Our flush mounting option has long been a favorite among the interior designers and architects who develop today’s most sought-after commercial and residential properties. A flush mounted Infratech heater can provide warmth without disrupting the décor of the space – the flush mount frame can be installed with the edges exposed, or can be covered by a drywall, plaster, stucco, or tongue-in-groove wood ceiling treatment. It is also easy to install and operate.

In this video, we will show you the process for flush mount installation.

How to Replace an Infratech Heating Element – SL – Series

Slimline heater’s sleek design virtually disappears into surrounding décor, and is capable of withstanding years of outdoor use. Slimline heaters are ideal for surface mount applications up to ten feet, and feature a T-slot for flexible mounting options using the included brackets. Available in 1,600, 2,400, 3,000 and 4,000-watt models.

In this video, we will show you how to easily replace your heating element for your Infratech SL-Series heater.

How to Replace an Infratech Heating Element – W and WD-Series

Infratech’s classic W-Series heaters are ideal for most basic residential or commercial installations, ranging from 1500 to 4000 watts and 120 to 480 volt capacities. The dual element WD-Series provides more heat for large scale coverage needs, ranging from 3,000 to 6,000 watts and 208 to 480 volt capacities.

In this video, we’ll show you how to easily replace your heating element for your Infratech W-Series or WD-Series heaters.

Additional information

Choose Model

SL1612 29.50” 1600 Watt 120V, SL1624 29.50” 1600 Watt, SL2424 42.50” 2400 Watt, SL3024 63.50” 3000 Watt, SL4024 63.50” 4000 Watt


120V, 208V, 240V, 277V, 480V


Matte Black, Silver
