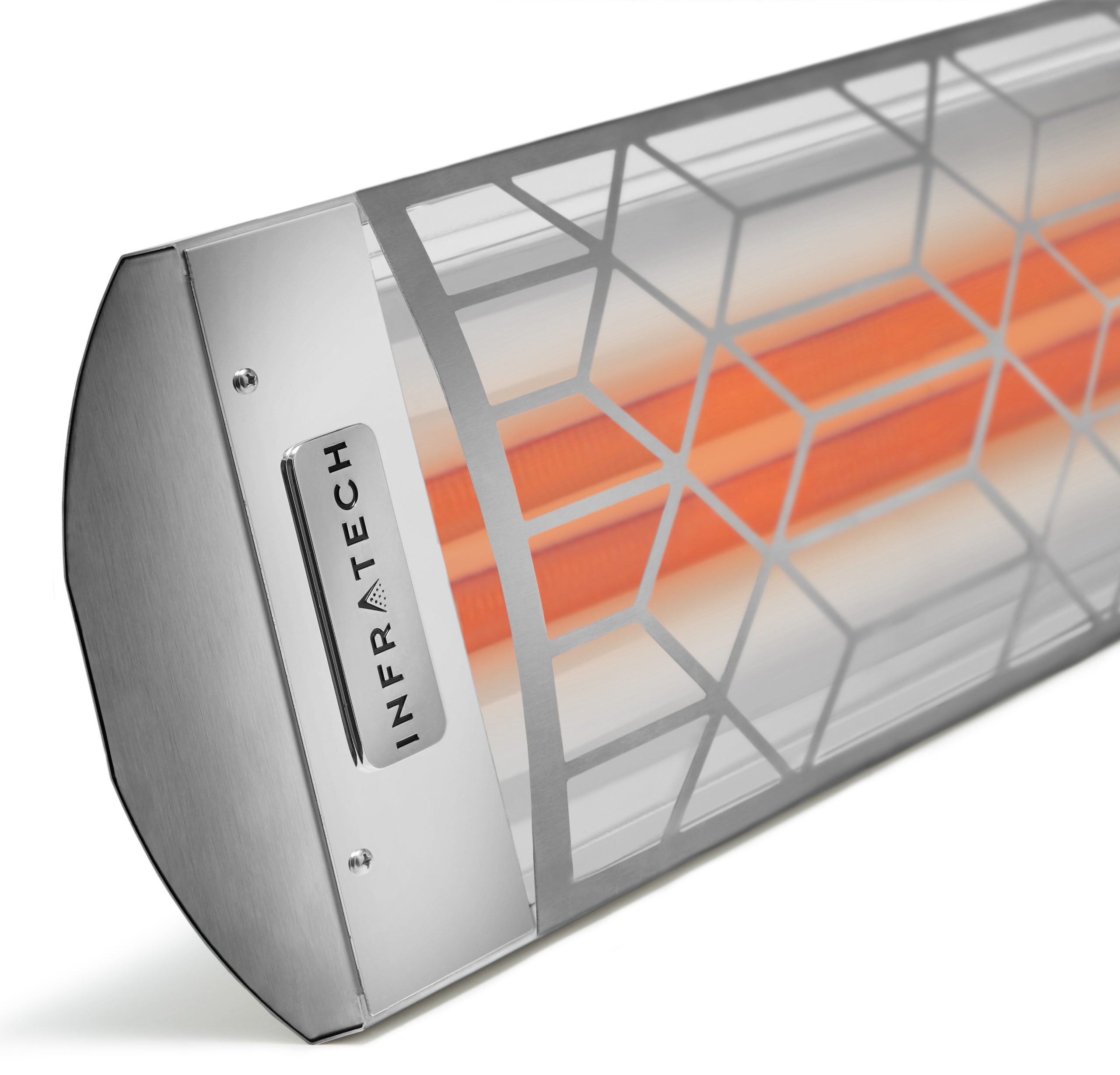

Infratech CD-Series Dual Element Heaters Motif Collection
Starts at: $835.00
Comes Standard in 240V. Available in 208V, 277V and 480V Upon Request.
Made in the USA
THESE HEATERS CANNOT BE FLUSH MOUNTED
Infratech Outdoor Heaters & Heating
Heaters come standard 240 Volt and are available in 208V, 277V and 480V upon request. Made with 304 Stainless steel and available in black or stainless steel only.
Infratech redesigned MOTIF Collection Heaters an excellent choice for most basic installations that require cost-effective controls. CD-Series heaters are available in a variety of wattages and voltages ranging from 2,000 to 4,000 watts and 208 to 480 volts. These classic heaters feature sleek profiles, short standoffs, low clearance heights, and a beautiful contemporary fascia. The contemporary fascia has been designed to add visual interest to any modern structure. Whether it be a home or commercial building. It is inspired by the clean lines and iconic forms of the minimalist, modern, and mid-century aesthetic traditions.
Stainless Steel Quartz Heater
Our MOTIF Collection CD-Series heaters are energy efficient, with wide, polished reflectors that provide comfortable and uniform heat coverage. For residential or commercial use, and is made of 304 commercial-grade stainless steel.
Infratech quartz elements provide pleasant medium wave heat. Competing heaters utilize shortwave quartz elements that produce more intense heat and emit a very bright, harsh-colored light. By contrast, Infratech medium wave elements effectively heat your space, while providing a soft, warm glow that is practically unnoticeable.

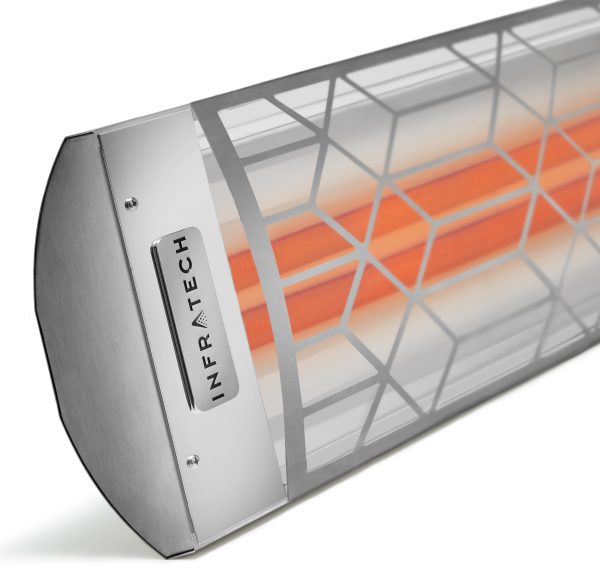

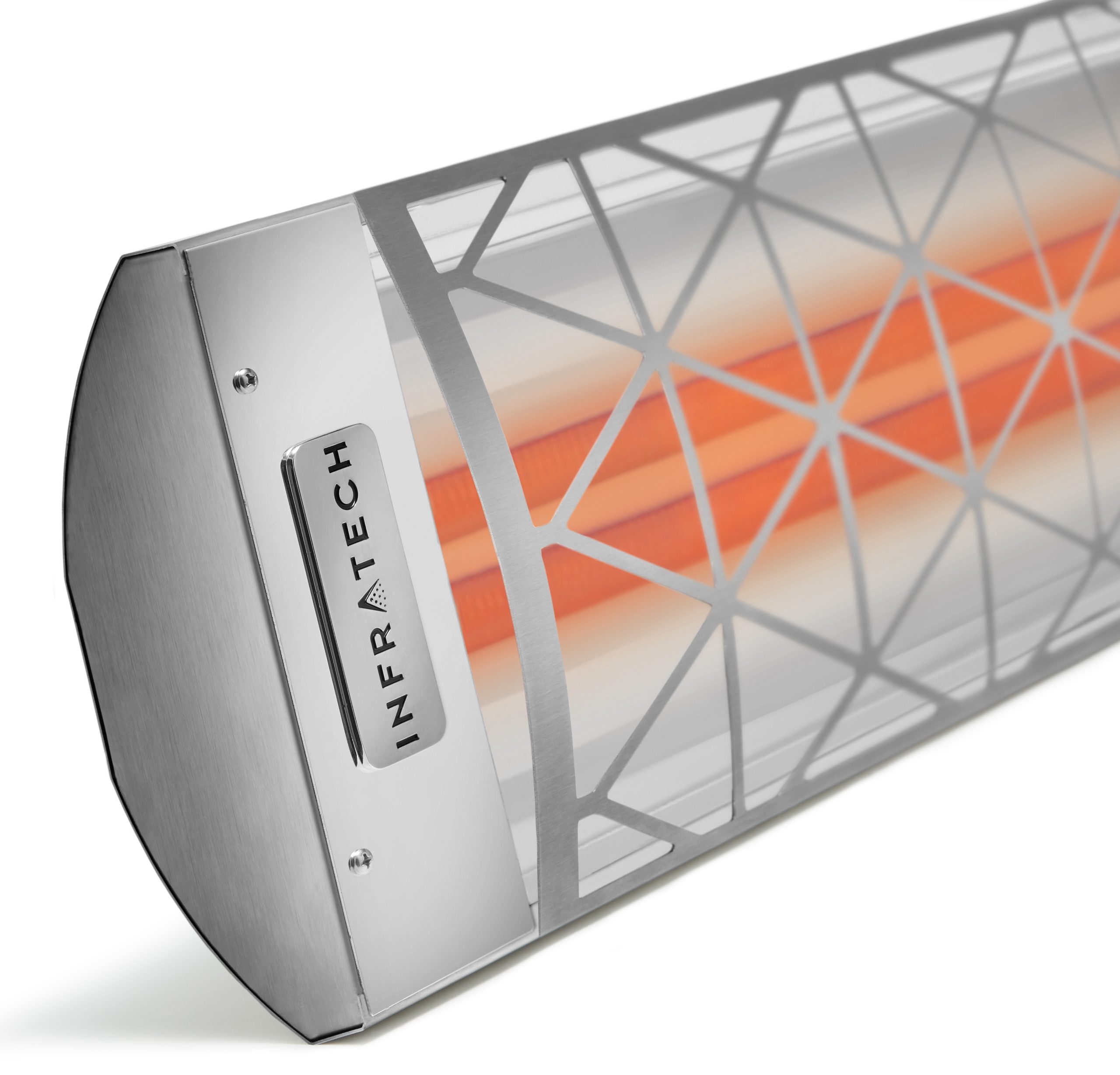

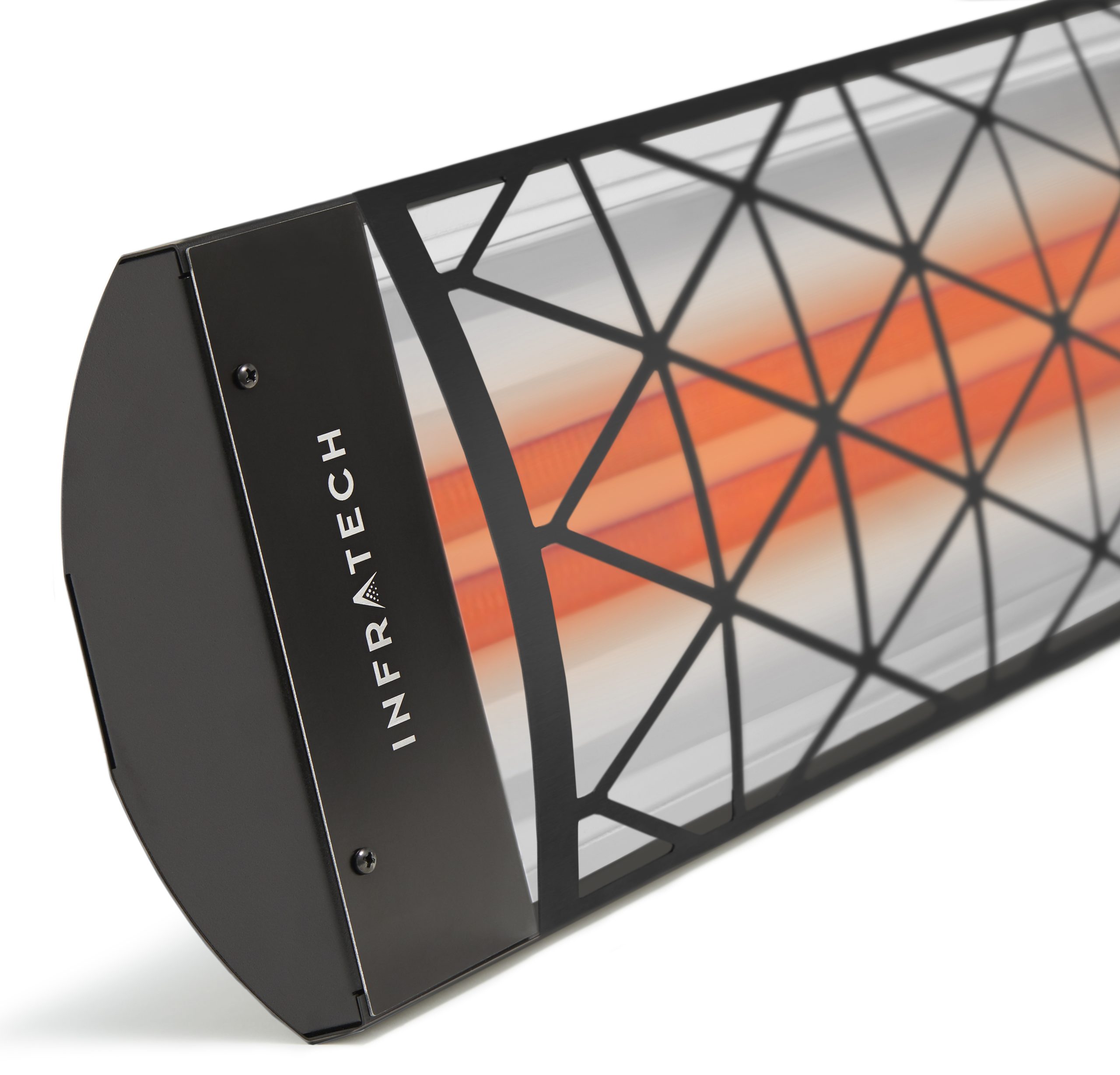

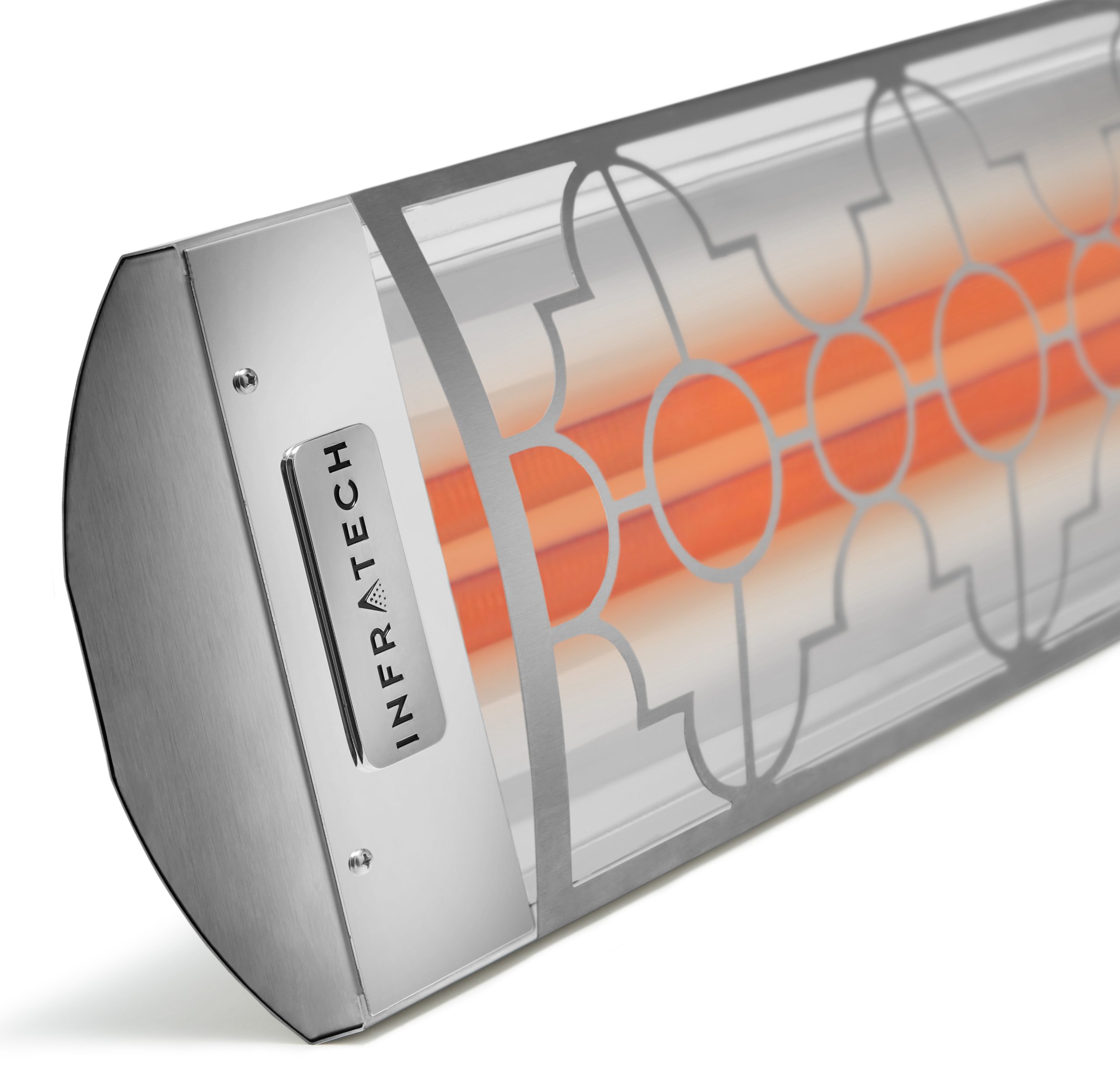

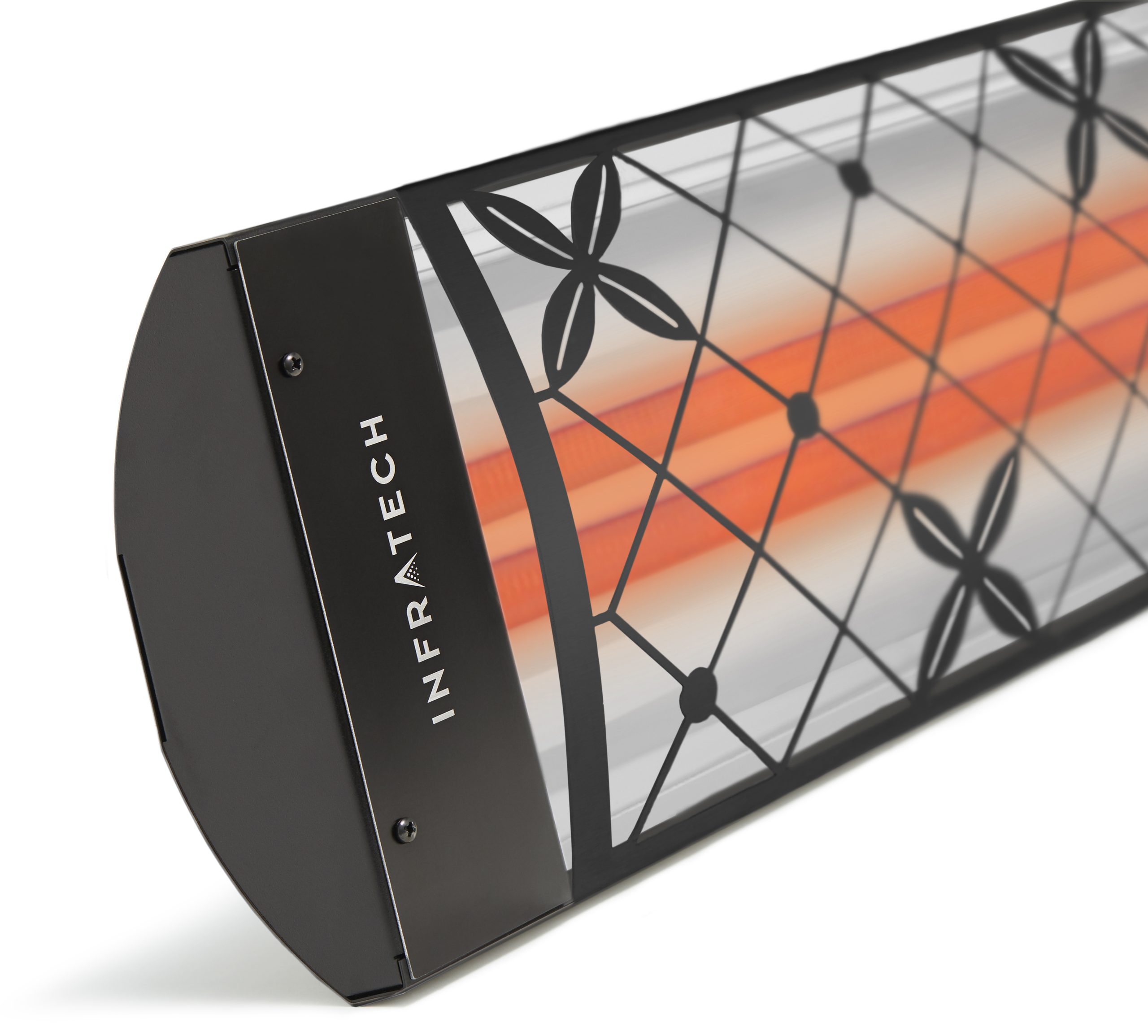

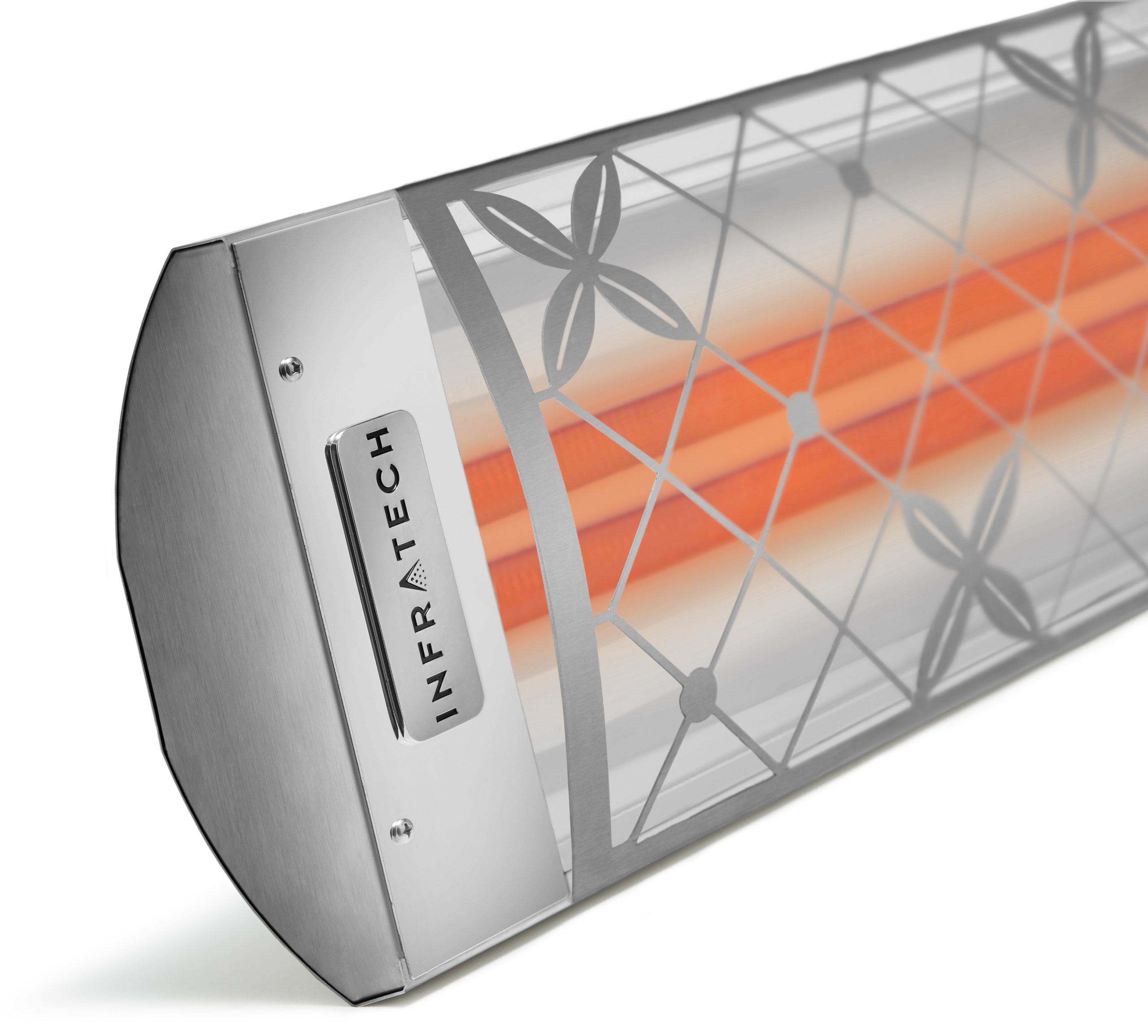

1=Contemporary 2=Craftsman 3=Mediterranean 4=Traditional
Features:
- Upon Request Available in 208 volts, 277 volts, and 480 volts
- Decorative Fascia
- 39″ Length x 8″ Width or 61 1/4″ Length x 8″ Width
- 6″ Stainless Steel Mounting Kit Included
- UL Listed for Outdoor or Indoor use
- Quartz Element with approximately 5,000 hours of use

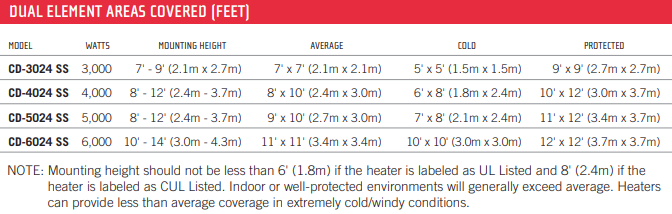

- Mounting Height: 7′ to 9′ for 39″, 10′ to 14′ for 61 1/4″
- 0 to 60° Mounting Angle

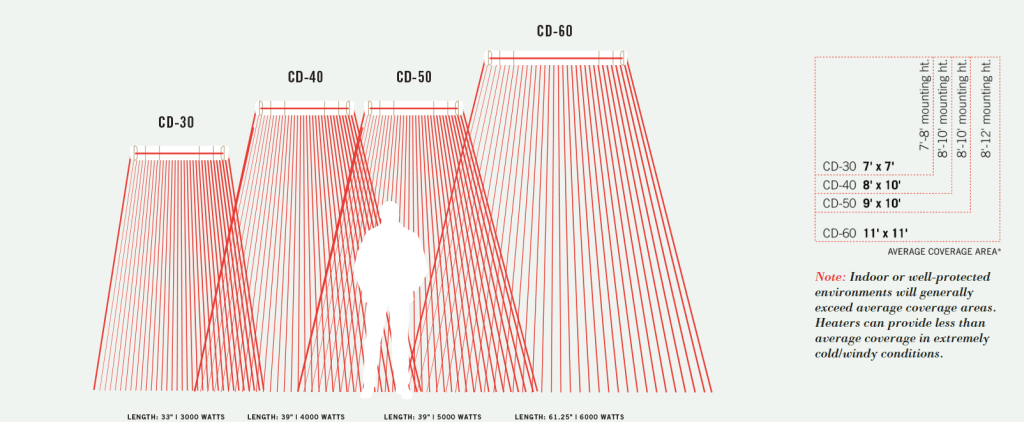

- Approximate 6′ x 6′ Heat Coverage for 39″, 11′ x 11′ Heat Coverage for 61 1/4″
- Minimal Maintenance Costs
- 3 Year Warranty
Clean Energy, For Continuous Use
Infratech elements are rated for near 5,000 hours of continuous use. In many cases, you will find yourself enjoying your heater for years before a replacement would be necessary. Always refer to the CD-Series manual for specific instructions and be sure to disconnect the power to your heater before attempting to change an element.
Additional information
| Length | 39", 48", 61 1/4" |
|---|---|
| Wattage | 4000 Watts, 5200 Watts, 6000 Watts |
| Fuel Type | Electric |

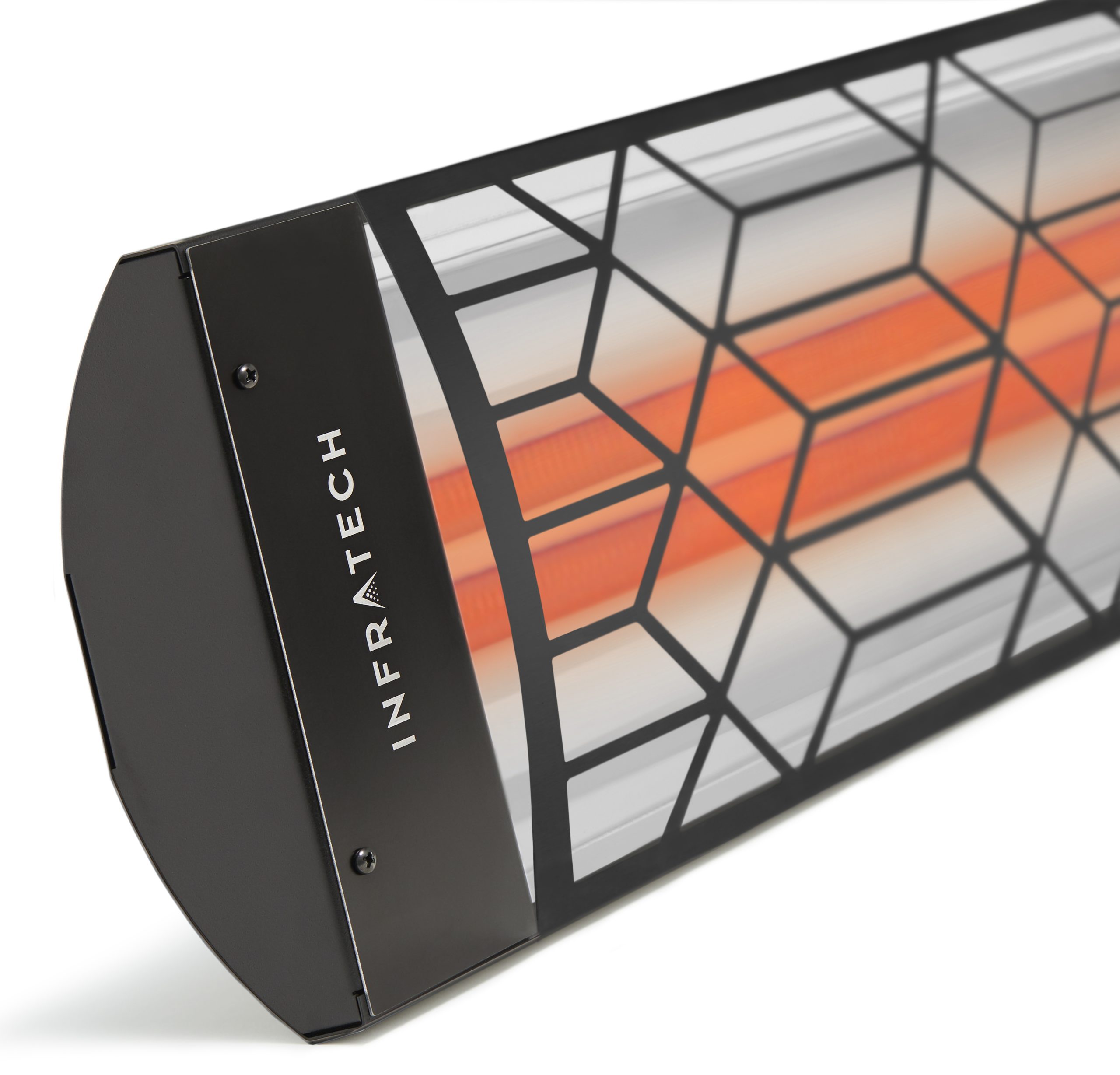

| Finish | Black, Stainless Steel |
| Choose Model | CD4024SS1 ***39" 4000 WATT (Stainless Steel), CD4024BL1 ***39" 4000 WATT (Black), CD5224SS1 ***48" 5200 WATT (Stainless Steel), CD5224BL1 ***48" 5200 WATT (Black), CD6024SS1 ***61-1/4" 6000 WATT (Stainless Steel), CD6024BL1 ***61-1/4" 6000 WATT (Black |
| Style | Contemporary, Craftsman, Mediterranean, Traditional |
