Bromic Platinum Smart-Heat Electric Heater Black or White Patio Heater

Specifications

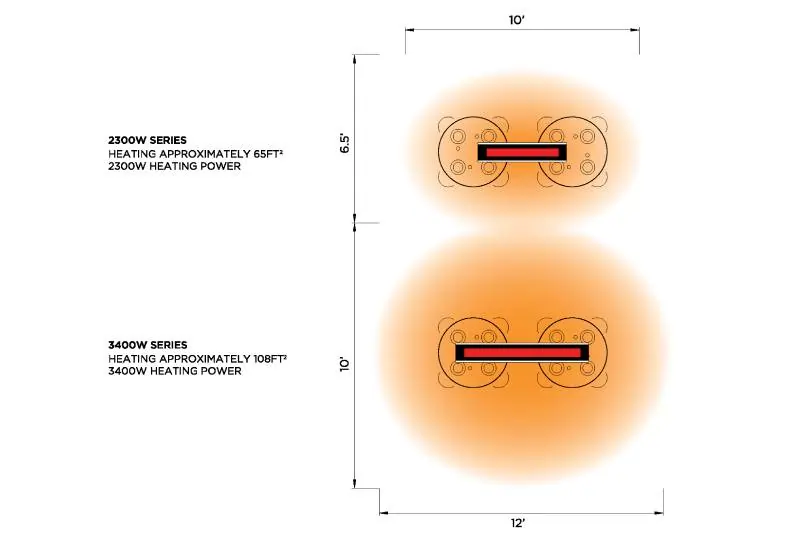

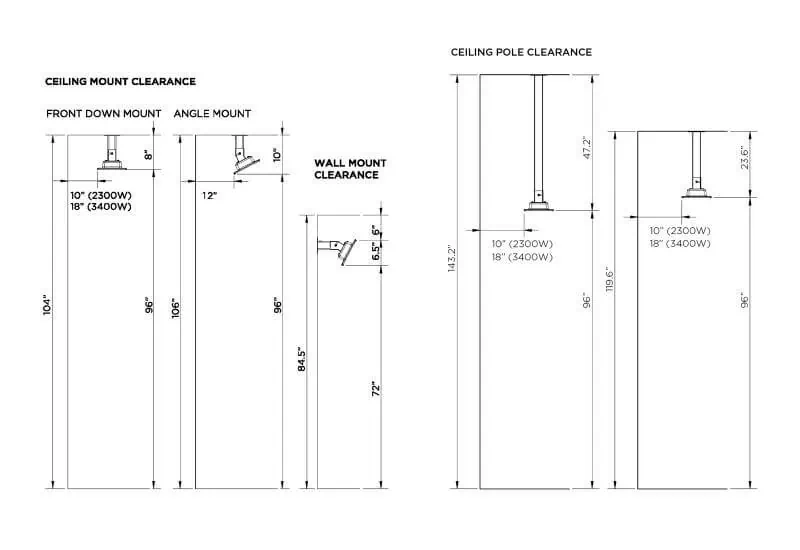

Model Number	Product Codes	Fuel Type	Color	Heat Area	Rated Current	Minimum Floor Clearance
2300W SERIES	BH0320003 | BH0320007	Electric	Black | White	65²	230 – 240V/9.6A	WALL 72” | CEILING 96”
3400W SERIES	BH0320005 | BH0320008	Electric	Black | White	108²	230 – 240V/14.2A	WALL 72” | CEILING 96”

Mounting Options

Model Number	Ceiling Mount	Ceiling Recess Kit Product Codes	Wall Mount	Recessed | Flush Mount	Cieling Pole Mount	Ceiling Pole (2’) Product Code	Ceiling Pole (4’) Product Code	Freestanding
2300W SERIES	Yes	BH3130017	Yes	Yes	Yes	BH3130023	BH3130024	No
3400W SERIES	Yes	BH3130027	Yes	Yes	Yes	BH3130023	BH3130024	No

Control Options

On/Off Control & Dimmer Control: 1 CH = Channel Input, each Channel Input can control up to 6000 Watts of power or 10 gas heaters. Below chart explains each model and how many heaters can be used per CH (Channel).

On/Off Controller: Heater(s) can be turned on or off at full power capacity, providing straight forward function and usage of your outdoor heater(s). Using the enabled Wi-Fi (compatible with 2.4GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.

Dimmer Controllers: Using the Bromic Heating App, you can instantly and precisely adjust heat output down to 1% increments and other unique scenes and settings for ideal outdoor experiences. Using the enabled Wi-Fi (compatible with 2.4 GHz) or Bluetooth connectivity, control and customize your comfort via the Bromic Heating App.

On/Off Control & Dimmer Control: Neither come with a remote. Wi-Fi and Bluetooth only.

Wattage	Item Number	On | Off 1 CH BH3130051	On | Off CH 2 BH3130052	On | Off 5 CH BH3130053	Dimmer 1 CH BH3130061	Dimmer 2 CH BH3130062	Dimmer 5 CH BH3130063
2300 SERIES	BH0320003 240V BLACK BH0320007 240V WHITE	2 HEATERS (PER CH)	4 HEATERS (2 PER CH)	10 HEATERS (2 PER CH)	2 HEATERS (PER CH)	4 HEATERS (2 PER CH)	10 HEATERS (2 PER CH)
3400 SERIES	BH0320005 240V BLACK BH0320008 240V WHITE	1 HEATER (PER CH)	2 HEATERS (1 PER CH)	5 HEATERS (1 PER CH)	1 HEATER (PER CH)	2 HEATERS (1 PER CH)	5 HEATERS (1 PER CH)
4500 SERIES	BH3622000 240V BLACK BH3622001 240V WHITE	1 HEATER (PER CH)	2 HEATERS (1 PER CH)	5 HEATERS (1 PER CH)	1 HEATER (PER CH)	2 HEATERS (1 PER CH)	5 HEATERS (1 PER CH)
2300 SERIES	BH0320019 208V BLACK BH0320020 208V WHITE	2 HEATERS (PER CH)	4 HEATERS (2 PER CH)	10 HEATERS (2 PER CH)	2 HEATERS (PER CH)	4 HEATERS (2 PER CH)	10 HEATERS (2 PER CH)
3400 SERIES	BH0320021 208V BLACK BH0320022 208V WHITE	1 HEATER (PER CH)	2 HEATERS (1 PER CH)	5 HEATERS (1 PER CH)	1 HEATER (PER CH)	2 HEATERS (1 PER CH)	5 HEATERS (1PER CH)
4500 SERIES	BH3622004 208V BLACK BH3622005 208V WHITE	1 HEATER (PER CH)	2 HEATERS (1 PER CH)	5 HEATERS (1 PER CH)	1 HEATER (PER CH)	2 HEATERS (1 PER CH)	5 HEATERS (1 PER CH)
NOTE:	Platinum 4500W-All Models, Individual Element Control	N/A	1 ELEMENT PER CH	N/A	N/A	N/A	N/A
